Technical information

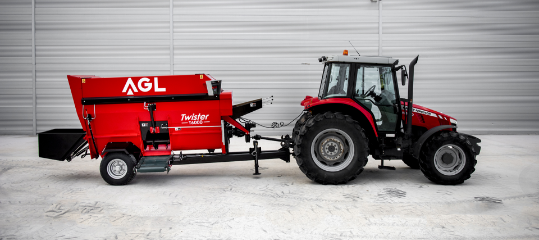

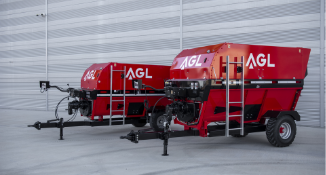

AGL’s horizontal feed mixer TWISTER model is a unique model that inludes all of our experience in the making of the feed mixing machines. The feed mixer has an ideal mixing and cutting system with two horizontal augers equipped with highly durable cutting blades. Corresponding angled blades provide and ideal blend and cut. All of AGL feed mixing machines are made of high quality steel, the chassis is specially reinforced, the entire sheet metal part has a thickness of 6 mm. As a standard, the hydraulic cover thats on the right side of the vehicle (OPTIONAL: it can be on the left or both sides) guaranteed uninterrupted and rapid distribution of the product. The hydraulically adjustable belt conveyor also simplifies discharge and provides precise feeding. The rear bucket allows farmers who do not have a loading ramp or loader, to fill the mixer easily
Model |
VT 6000 |
VT 8000 |
VT 10000 |
VT 12000 |
Volume (m³) |
6 |
8 |
10 |
12 |
Number of Auger (Qty.) |
2 |
2 |
2 |
2 |
Length (mm) |
5280 |
5500 |
6075 |
6800 |
Width (mm) |
1810 |
2148 |
2145 |
2145 |
Height* (mm) |
2418 |
2600 |
2600 |
2600 |
Weight (mm) |
2600 |
3370 |
4450 |
4950 |
Cutting Blades Max. (Qty.) |
108 |
56+28 |
80+28 |
88+32 |
Power Takeoff (rpm) |
540 |
540 |
540 |
540 |
Power Requirement (BG(kW)) |
40-47 |
54-62 |
65-75 |
82-95 |
